Hyundai Genesis: Advanced smart cruise control system / Smart Cruise Control speed

To set Smart Cruise Control speed

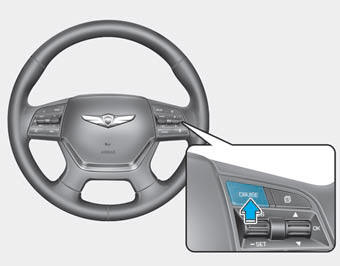

1.Push the CRUISE button on the steering wheel to turn the system on. The CRUISE indicator will illuminate.

2.Accelerate to the desired speed.

The Smart Cruise Control speed can be set as follows:

• 20 mph (30 km/h)~110 mph (180 km/h): when there is no vehicle in front
• 0 mph (0 km/h)~110 mph (180 km/h): when there is a vehicle in front

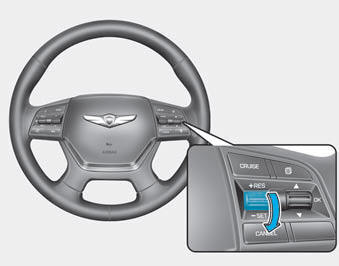

3.Push the lever down (SET-), and release it at the desired speed.The Set Speed and Vehicle-to-Vehicle Distance on the LCD display will illuminate.

4.Release the accelerator pedal. The desired speed will automatically be maintained.

If there is a vehicle in front of you, the speed may decrease to maintain the distance to the vehicle ahead.

On a steep grade, the vehicle may slow down or speed up slightly while going uphill or downhill.

To increase Smart Cruise Control set speed

Follow either of these procedures:

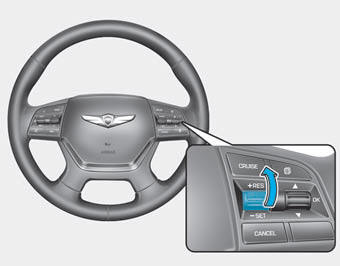

• Push the lever up (RES+), and hold it. Your vehicle set speed will increase by 5 mph (10 km/h). Release the lever at the speed you want.
• Push the lever up (RES+), and release it immediately. The cruising speed will increase by 1.0 mph (1.0 km/h) each time you move the lever up in this manner.
• You can set the speed to 110 mph (180 km/h).

To decrease the Smart Cruise Control set speed

Follow either of these procedures:

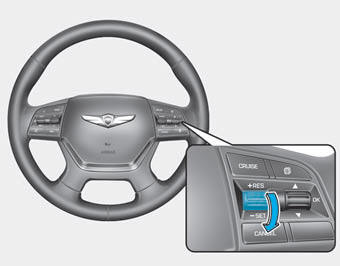

• Push the lever down (SET-), and hold it. Your vehicle set speed will decrease by 5 mph (10 km/h). Release the lever at the speed you want.
• Push the lever down (SET-), and release it immediately. The cruising speed will decrease by 1.0 mph (1.0 km/h) each time you move the lever down in this manner.
• You can set the speed to 20 mph (30 km/h).

To temporarily accelerate with the Smart Cruise Control on

If you want to speed up temporarily when the Smart Cruise Control is on, depress the accelerator pedal. Increased speed will not interfere with Smart Cruise Control operation or change the set speed.

To return to the set speed, take your foot off the accelerator.

If you push the lever down (SET-) at increased speed, the cruising speed will be set again.

✽ NOTICE

Be careful when accelerating temporarily, because the speed is not controlled automatically at this time even if there is a vehicle in front of you.

Smart Cruise Control will be temporarily canceled when:

Cancelled manually

• Depressing the brake pedal.

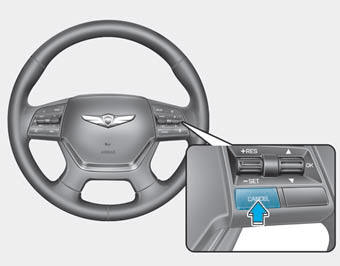

• Pressing the CANCEL button located on the steering wheel.
• Depress the brake pedal and press the CANCEL button at the same time, when the vehicle is at a standstill.

The Advanced Smart Cruise Control turns off temporarily when the indicator on the LCD display turns off.

The CRUISE indicator is illuminated continuously.

To convert to Cruise Control Mode

The driver may choose to only use the Cruise Control Mode (speed control function) by doing as follows: 1.Turn the Smart Cruise Control System on (the cruise indicator light will be on bu ...

Cancelled automatically

The driver's door is opened. The shift lever is shifted to N (Neutral), R (Reverse) or P (Park). The EPB (Electric Parking Brake) is applied. The vehicle speed is over 120 mph (190 k ...
