Hyundai Genesis: Advanced smart cruise control system / Cancelled automatically

• The driver's door is opened.
• The shift lever is shifted to N (Neutral), R (Reverse) or P (Park).
• The EPB (Electric Parking Brake) is applied.
• The vehicle speed is over 120 mph (190 km/h)
• The vehicle stops on a steep incline.
• The ESC (Electronic Stability Control), TCS (Traction Control System) or ABS is operating.
• The ESC is turned off.
• The sensor or the cover is dirty or blocked with foreign matter.
• When the vehicle is stopped for more than 5 minutes.
• The vehicle stops and goes repeatedly for a long period of time.
• The driver starts driving by pushing the lever up (RES +) or down (SET -), approximately 3 seconds after the vehicle is stopped by the Smart Cruise Control System with no other vehicle ahead.
• The driver starts driving by pushing the lever up (RES +) or down (SET -), after stopping the vehicle with a vehicle stopped far away in front.
• The accelerator pedal is continuously depressed for more than one minute.

Each of these actions will cancel the Smart Cruise Control operation. (The Set Speed and Vehicleto- Vehicle Distance on the LCD display will go off.)

In a condition the Smart Cruise Control is cancelled automatically, the Smart Cruise Control will not resume even though the RES+ or SET- lever is pushed. Also, the EPB will be applied when the vehicle is stopped.

✽ NOTICE

If the Smart Cruise Control is cancelled by other than the reasons mentioned, have your vehicle checked by an authorized HYUNDAI dealer.

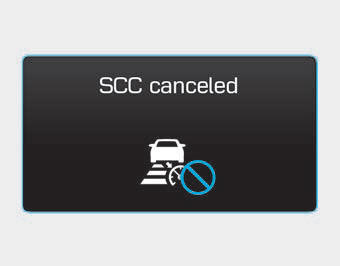

If the system is cancelled, the warning chime will sound and a message will appear for a few seconds.

You must adjust the vehicle speed by depressing the accelerator or brake pedal according to the road condition ahead and driving condition.

Always check the road conditions. Do not rely on the warning chime.

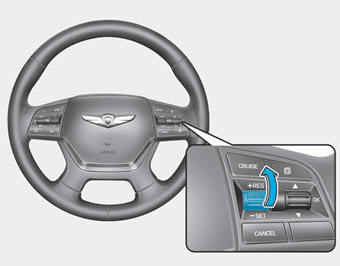

To resume Smart Cruise Control set speed

If any method other than the CRUISE lever was used to cancel cruising speed and the system is still activated, the cruising speed will automatically resume when you push the lever up (RES+) or down (SET-).

If you push the lever up (RES+), the speed will resume to the recently set speed. However, if vehicle speed has dropped below approximately 20 mph (30 km/h), it will resume when there is a vehicle in front of your vehicle.

✽ NOTICE

Always check the road conditions when you push the lever up (RES+) to resume speed.

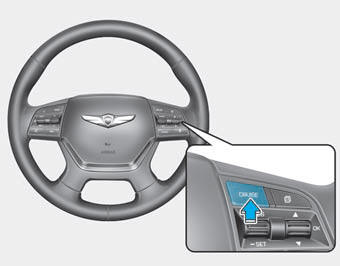

To turn Cruise Control off

Push the CRUISE button (the CRUISE indicator light will go off).

Smart Cruise Control speed

To set Smart Cruise Control speed 1.Push the CRUISE button on the steering wheel to turn the system on. The CRUISE indicator will illuminate. 2.Accelerate to the desired speed. The Smart Cr ...

Smart Cruise Control Vehicleto- Vehicle Distance

To set Vehicle-to-Vehicle Distance When the Smart Cruise Control System is ON, you can set and maintain the distance from the vehicle ahead of you without pressing the accelerator or brak ...
