Hyundai Genesis: Advanced smart cruise control system / To convert to Cruise Control Mode
The driver may choose to only use the Cruise Control Mode (speed control function) by doing as follows:
1.Turn the Smart Cruise Control System on (the cruise indicator light will be on but the system will not be activated).
2.Push and hold the Vehicle-to- Vehicle Distance button for more than 2 seconds.

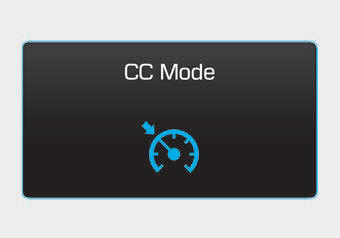

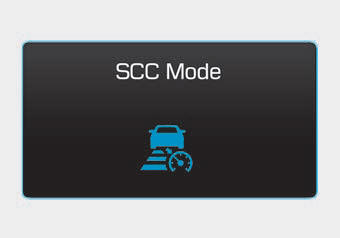

3.Choose between "Smart Cruise Control (SCC) Mode" and "Cruise Control (CC) Mode".
When the system is canceled using the CRUISE button or the CRUISE button is used after the engine is turned on, the SCC Mode will turn on.
WARNING
When using the Cruise Control Mode, you must manually adjust the distance to other vehicles by depressing the accelerator or brake pedal. The system does not automatically adjust the distance to vehicles in front of you.
Advanced smart cruise control system
➀ Cruise Indicator
➁ Set Speed
➂ Vehicle-to-Vehicle Distance
The Smart Cruise Control System
allows you to program the vehicle to
maintain constant speed and distance
detecting the ...
Smart Cruise Control speed
To set Smart Cruise Control
speed
1.Push the CRUISE button on the
steering wheel to turn the system
on. The CRUISE indicator will illuminate.
2.Accelerate to the desired speed.
The Smart Cr ...
