Hyundai Genesis: Safety system of your vehicle / Seats

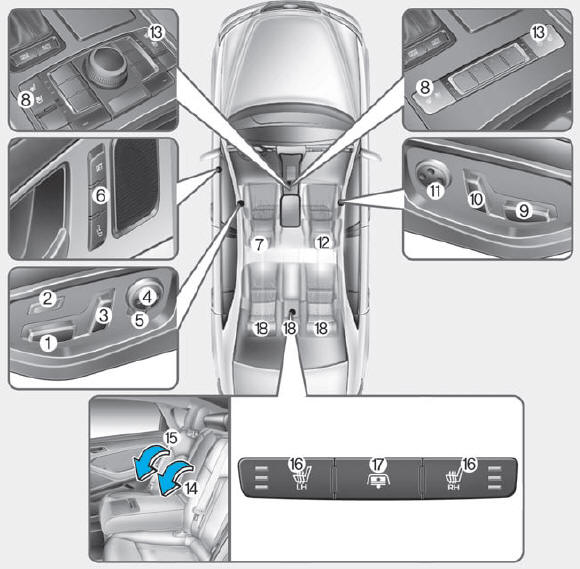

Driver’s seat
(1) Seat sliding forward or rearward/
Seat tilt/height adjustment
(2) Seat cushion length adjustment
(3) Seatback angle adjustment
(4) Lumbar support adjustment
(5) Seat bolster adjustment*
(6) Driver position memory system*
(7) Headrest adjustment
(8) Seat warmer/Seat warmer and cooler (by air)
Front passenger’s seat
(9) Seat sliding forward or rearward/
Seat tilt/height adjustment
(10) Seatback angle adjustment
(11) Lumbar support adjustment*
(12) Headrest adjustment
(13) Seat warmer/Seat warmer and cooler (by air)
Rear seat
(14) Ski through
(15) Armrest
(16) Seat warmer*
(17) Rear curtain control*
(18) Headrest height adjustment
You will find many safety precautions
and recommendations throughout
this section, and throughout this manual.
The safety precautions in this section
are among the most important.
Always wear ...
Adjusting the seats so that you are sitting
in a safe, comfortable position
plays an important role in driver and
passenger safety together with the
seat belts and air bags in an accident.
WA ...
