Hyundai Genesis: Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Component Location

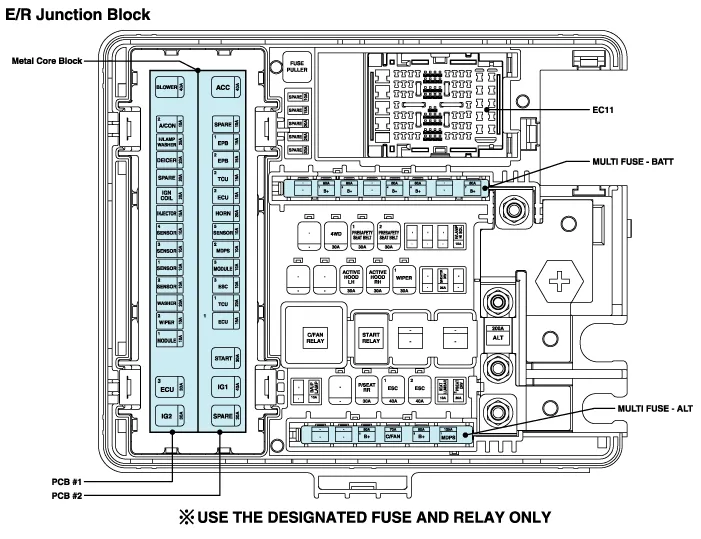

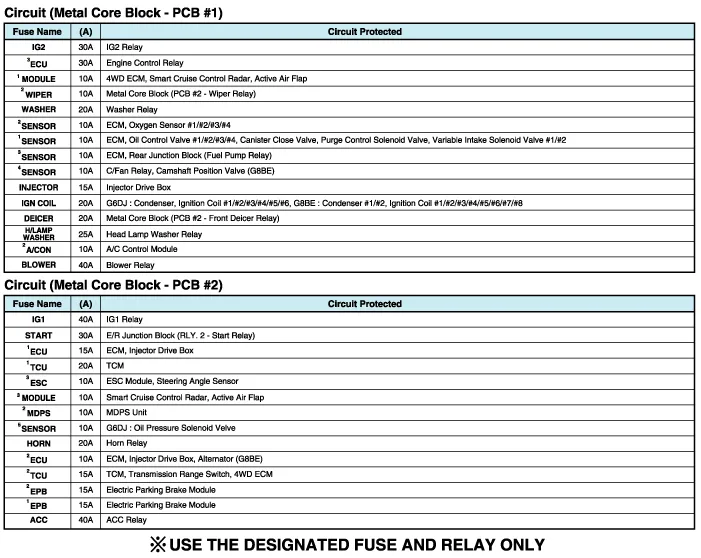

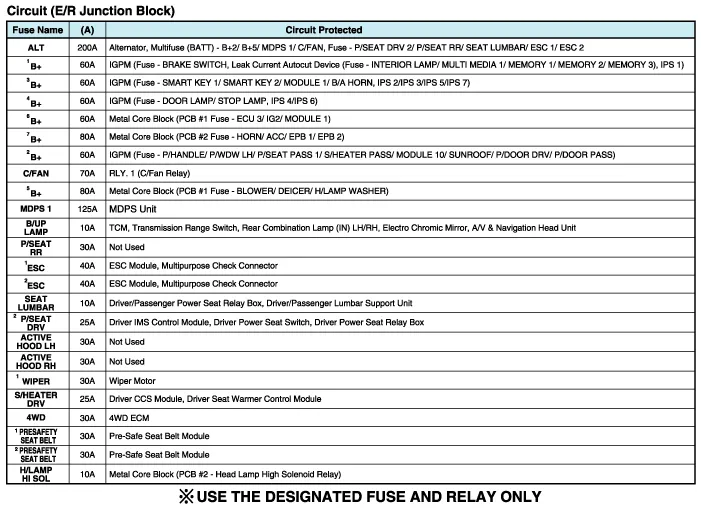

Engine room junction block

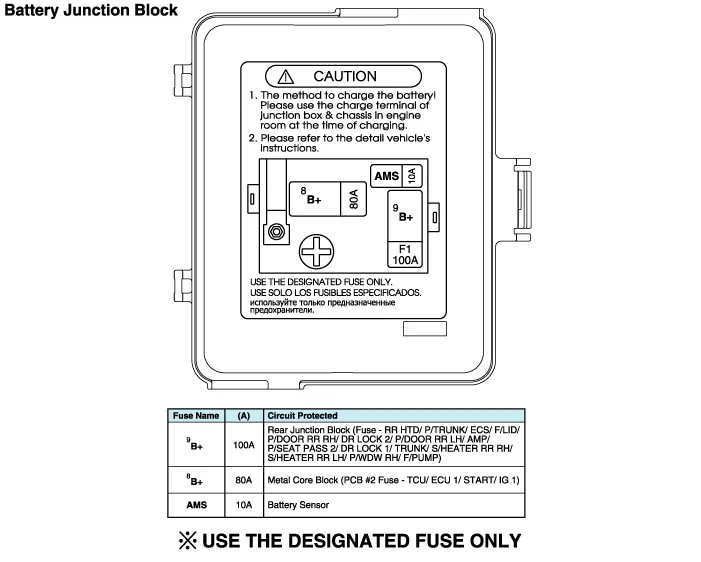

Battery junction block

Components and Components Location
Component Location 1. Engine room relay block 1. CGW & SJB(Central Gateway & Smart Junction Box)2. RSJB(Rear Smart Junction Box) ...

Relay Box (Engine Compartment) Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. Power Relay (Type A) Check for continuity between the terminals. ...
