Hyundai Genesis: Parking Brake System / Parking Brake Assembly Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Brake System / Parking Brake System / Parking Brake Assembly Components and Components Location

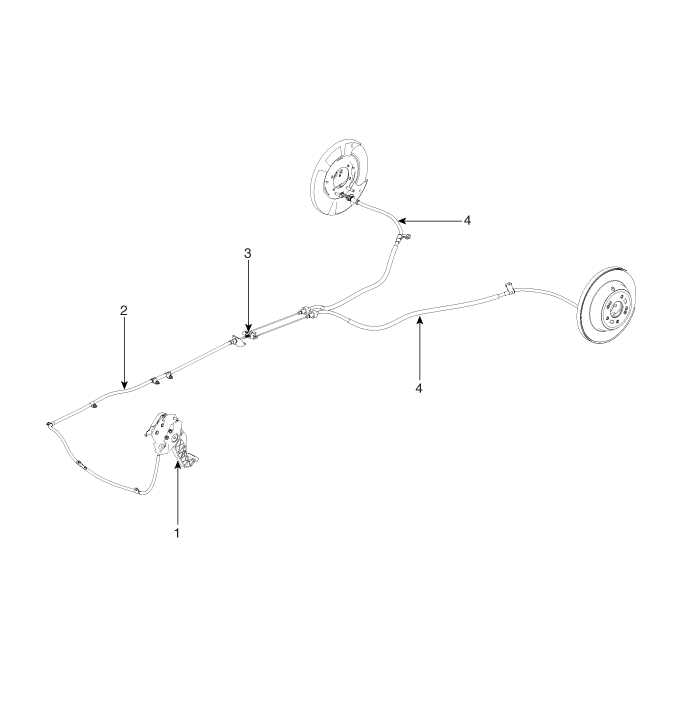

Components

1. Parking brake pedal
2. Front parking brake cable
3. Equalizer assembly
4. Rear parking brake cable

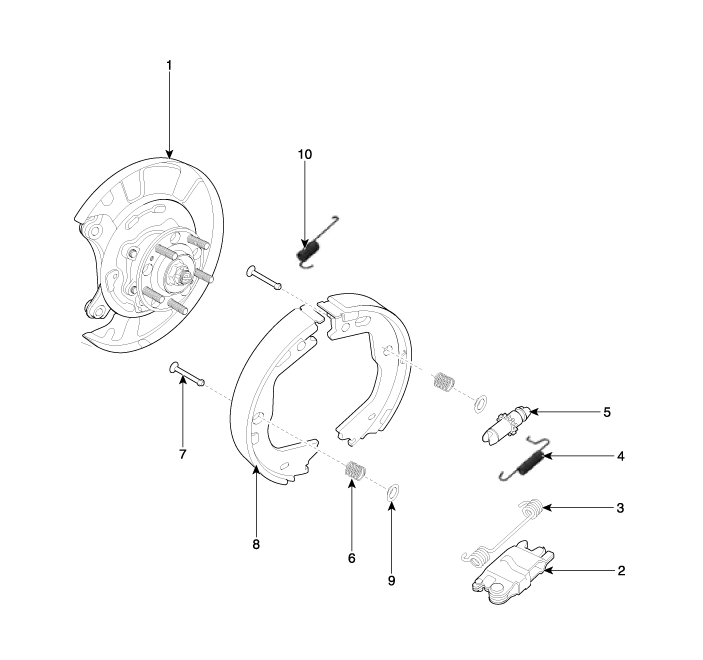

Components Location

1. Backing plate
2. Operating lever
3. Upper spring
4. Lower spring
5. Adjuster
6. Shoe hold down spring
7. Shoe hold down pin
8. Parking brake shoe
9. Shoe hold down washer
10. Pull off spring

Parking Brake System
...

Parking Brake Assembly Repair procedures
Removal Parking Brake Pedal 1. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 2. Remove the IPM after removing the nut and connector. (Refer to Body Electrical System - "B ...
