Removal

Special care is needed for the following points in case of working with the non-gloss timber trimming.

•	Apply the protective tape to the tool when disassembling the components with the screwdriver or remover.

•	Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.

•	Use caution for the crash pad garnish and door trim upper garnish made of timber (Real wood) because they can be scratched or picked.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the Lower panel crash pad.

3.	Remove the driver crash pad under the cover.

4.	Remove the shroud upper shroud panel.

5.	Cluster fascia Upper panel and Remove the cluster fascia panel.

6.	Loosen the mounting screw (4), Remove the instrument panel (A).

7.	Remove the instrument panel connector, Remove the instrument panel.

Installation

1.	Install the instrument cluster.

2.	Install the cluster fascia upper panel and cluster fascia panel.

3.	Install the shroud upper panel.

4.	Install the driver crash pad under cover.

5.	Install the crash pad lower panel.

Inspection

Check point (Warning indicator)

Fault conditions and normal operating conditions, refer to the owner's manual.

Ref Symbol

Name

Color

Signal Input

Signal Control

Check Point

Turnsignal (Left)

Green

CAN

SJB
(Gateway)

1.	Multifunction switch

BCM

SJB

4.	CAN failure

Turnsignal (Right)

Green

CAN

SJB
(Gateway)

1.	Multifunction switch

BCM

SJB

4.	CAN failure

Tail Lamp

Green

CAN

SJB
(Gateway)

1.	Multifunction switch

BCM

SJB

4.	CAN failure

Fog Lamp

Green

CAN

SJB
(Gateway)

1.	Multifunction switch

BCM

SJB

4.	CAN failure

High Beam

Blue

CAN

SJB
(Gateway)

1.	Multifunction switch

BCM

SJB

4.	CAN failure

Warning

Yellow

CAN
+
Hard-wired

BSD

1.	BSD System

2.	CAN failure

PSB

1.	PSB System

SJB

3.	CAN failure

SCC
ECS

A.	SCC System

B.	AEB System

C.	LDWS System

D.	AHLS System

E.	TPMS System

F.	HSWS System

2.	CAN failure

Low Washer

1.	Whasher fluid lever sensor

2.	Wiring failure

Digital Input

Reminders when service checks

Battery Charge

Red

Hard-wired

Alternator

1.	Alternator

2.	Wiring Failure

Battery

Oil Pressure

Red

Hard-wired

ECM

1.	Oil pressure sensor

2.	Wiring Failure

ECM

4.	CAN failure

Check Engine

Yellow

CAN

ECM

2.	CAN failure

Immobilizer

Yellow

CAN
+
Hard-wired

SJB
(Gateway)

1.	SMK System

SJB

3.	CAN failure

4.	Hard-wired

Parking Brake
Brake Fluid
EBD
EPB
EVP

Red

CAN

SJB
(Gateway)

IGPM

2.	VDC System

3.	EPB System

4.	CAN failure

5.	Parking Brake Switch

6.	Brake Oil lever sensor

EBD

EPB

ABS

Yellow

CAN

ABS

1.	VDC System

2.	CAN failure

ESC

Yellow

CAN

TCS

1.	VDC System

2.	CAN failure

ESC Off

Yellow

CAN

TCS

1.	VDC System

2.	CAN failure

EPB

Yellow

CAN

EPB

1.	EPB System

2.	CAN failure

Auto Hold

White

CAN

VDC

1.	VDC System

2.	CAN failure

Yellow

Green

Seat Belt

Red

CAN

SJB
(Gateway)

SJB

2.	CAN failure

Airbag

Red

CAN

SRSCM

1.	SRSCM System

2.	CAN failure

EPS(MDPS)

Red

CAN

MDPS

1.	MDPS Unit system

2.	MDPS Motor

3.	CAN failure

TPMS

Yellow

CAN

TPMS

1.	TPMS System

TPMS ??

3.	CAN failure

LDWS

Green

CAN

LDWS

1.	LDWS System

2.	CAN failure

Yellow

White

4WD

Yellow

CAN

4WD

4WD ECU

2.	CAN failure

Fuel Warning

Yellow

Direct
(Micom)

Fuel Segment

1.	Fuel Segment Failure

2.	Wiring Failure

Door Open

Red

CAN

SJB
(Gateway)

SJB

2.	CAN failure

3.	Door Sensor/switch

Trunk Open

Yellow

CAN

SJB
(Gateway)

SJB

2.	CAN failure

3.	Trunk Module

ECO

Green

CAN

ECO Mode

1.	Drive Mode Switch

2.	ECM System

3.	TCU System

SPORT

Yellow

CAN

SPORT Mode

1.	Drive Mode Switch

2.	ECM System

3.	TCU System

SNOW

White

CAN

SNOW Mode

1.	Drive Mode Switch

2.	ECM System

3.	TCU System

AEB

Yellow

CAN

AEB Fail

1.	SCC System

2.	CAN failure

Check point (Gauge)

NO	Name	Signal Input	Signal Control (Unit/Sensor)	Check Point
1	Speedometer	C-CAN	TCU	1)	CAN Line failure
3	Tachometer	C-CAN	EMS	1)	CAN Line failure
4	Cooling water temperature	C-CAN	EMS	1)	CAN Line failure
5	Fuel	Hardwire	Fuel Sander	1)	Fuel sender failure
5	Fuel	Hardwire	Fuel Sander	2)	Wiring failure
6	Shift lever indicator	C-CAN	TCU	1)	CAN Line failure
7	Compass	MM-CAN	HU	1)	CAN Line failure
8	Outside temperature	C-CAN	DATC	1)	CAN Line failure

Other cluster check list

(1)

USM (User Setting Mode)

USM setting process (mode: 24)

Setting can be changed by using the buttons of the steering switch. The items include In/out Seat Synchronization, vAuto Door Lock, Auto Door Lock Deactivate, Head Lamp Escort, Welcome Light, Welcome Sound, Triple Turn Signal, Average Fuel Consumption Auto Reset, HUD Height Adjustment, Brightness, and Content Setup. These items can be set and changed.

Diagnosis with GDS

1.	It will be able to diagnose defects of CLU with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

2.	Select model and "BCM".

3.	Select the "Cluster Moduel" to check.

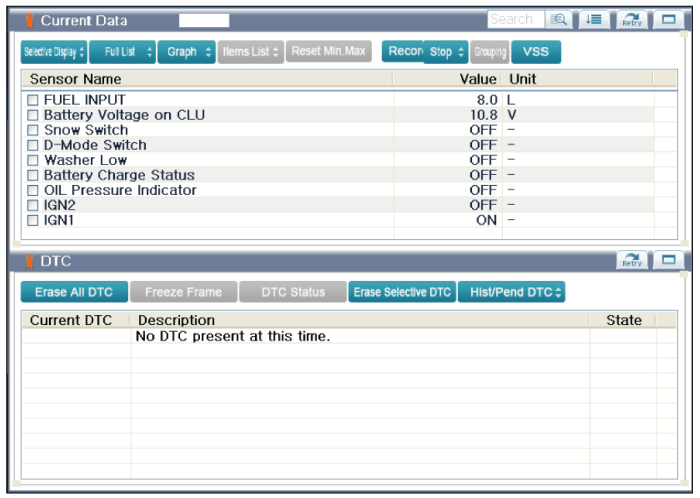

4.	Select "Input/output monitoring", if you will check current data of instrument cluster.

5.	If you will check each module data operation forcefully, select "Actuation test".

CLU Variant Coding

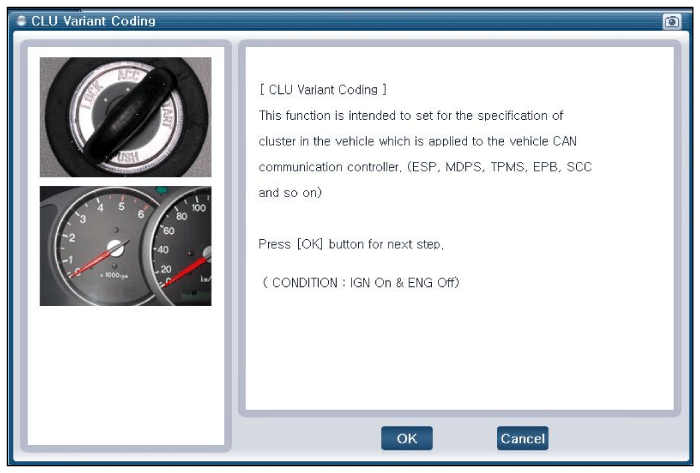

After replacing the cluster with a new one, must be performed the “Variant Coding” procedure.

1.	Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

2.	Select model and "BCM".

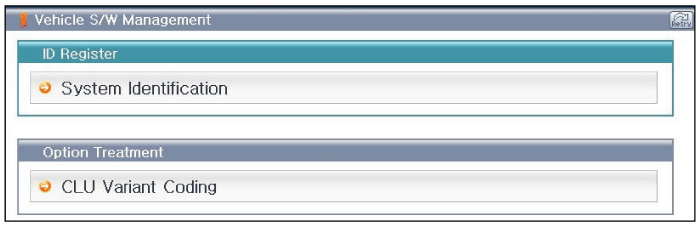

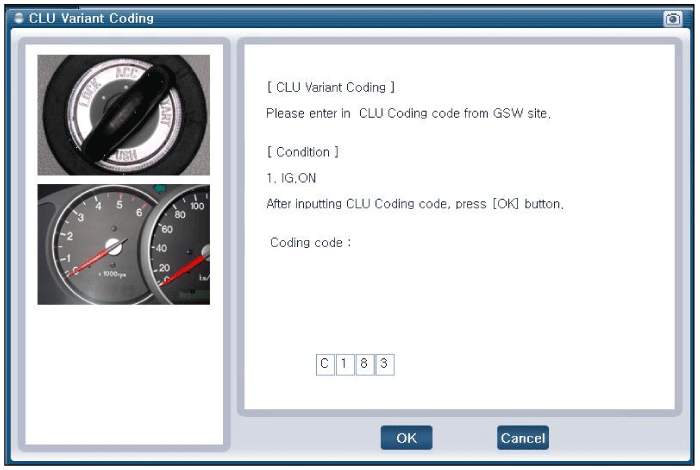

3.	Select Variant coding mode to perform.

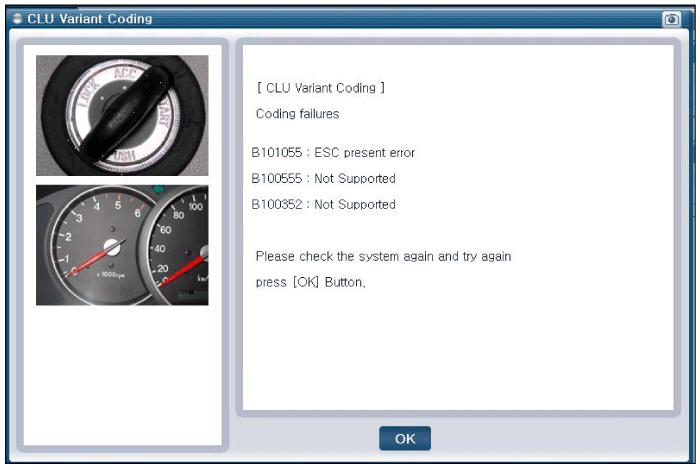

4.	If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.

Instrument Cluster Description and Operation

Description Communication Network Diagram AbbreviationExplanationAAFActive Air FlapACUAirbag Control UnitADMAssist Door ModuleAHDActive Hood SystemAMPAmplifierARSArmrest SwitchASCCAdvanced Smart ...

Troubleshooting

Troubleshooting Error ItemFailure symptomInspection items Detailed inspections Relevant Parts/ComponentsScreen displayTFT-LCD screen does not turn on 1. Connector attachments 2. Components ...
