Hyundai Genesis: SRSCM / Front Impact Sensor (FIS) Components and Components Location

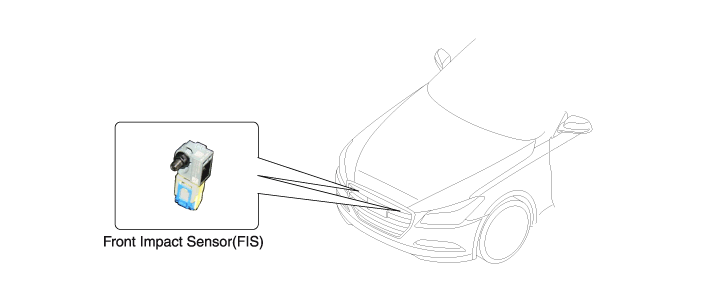

Components

Front Impact Sensor (FIS) Description and Operation

Description The front impact sensor (FIS) is installed in the Front End Module (FEM). They are remote sensors that detect acceleration due to a collision at its mounting location. The primary p ...

Front Impact Sensor (FIS) Repair procedures

Removal     • Removal of the airbag must be performed according to the precautions/ procedures described previously. • Before disconnecting the front impact sensor co ...
