Hyundai Genesis: Warning Messages / Check AEB system. Low Fuel. Engine has overheated

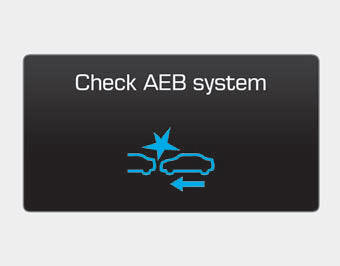

Check AEB system
.jpg)
- This warning message illuminates
if the sensor or cover is dirty or
obscured with foreign matter such
as snow. Clean the sensor or cover
by using a soft cloth.
- This warning message illuminates
if there is a malfunction with the
Autonomous Emergency Braking
(AEB) system. In this case, have
your vehicle inspected by an
authorized HYUNDAI dealer.

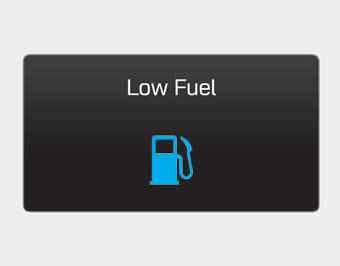

Low Fuel
.jpg)
• This warning message illuminates
if the fuel tank is nearly empty.
- When the low fuel level warning
light is illuminates.
- When the trip computer displays
“--- mile (or km)” as distance to
empty.
Add fuel as soon as possible.

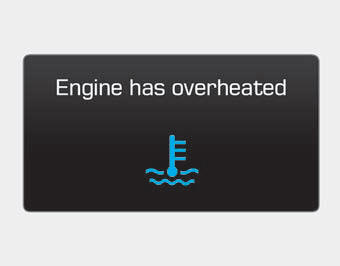

Engine has overheated
.jpg)
• This warning message illuminates
when the engine coolant temperature
is above 248°F (120°C). This
means that the engine is overheated
and may be damaged.
Check Active Air Flap System
• This warning message illuminates if
any of following conditions occurs.
- There is a malfunction with the
active air flap system.
- A foreign substance is st ...
