Hyundai Genesis: Interior Trim / Cowl Side Trim Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface. • Take care not to bend or scratch the trim and panels.

1.	Remove the front door scuff trim. (Refer to Interior Trim - "Door Scuff Trim")

2.	Remove the hood latch release handle. (Refer to Hood - "Hood Latch Release Handle")

3.	Remove the front door body side weatherstrip.

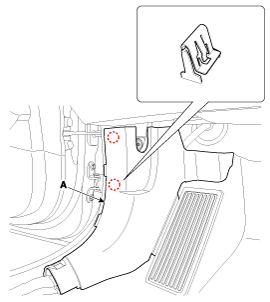

4.	Using a screwdriver or remover, remove the cowl side trim (A).

5.	Install in the reverse order of removal. • Replace any damage clips.

Cowl Side Trim Components and Components Location

Component Location 1. Cowl side trim ...

Front Pillar Trim Components and Components Location

Component Location 1. Front pillar trim ...
