Hyundai Genesis: Steering wheel / Components and Components Location

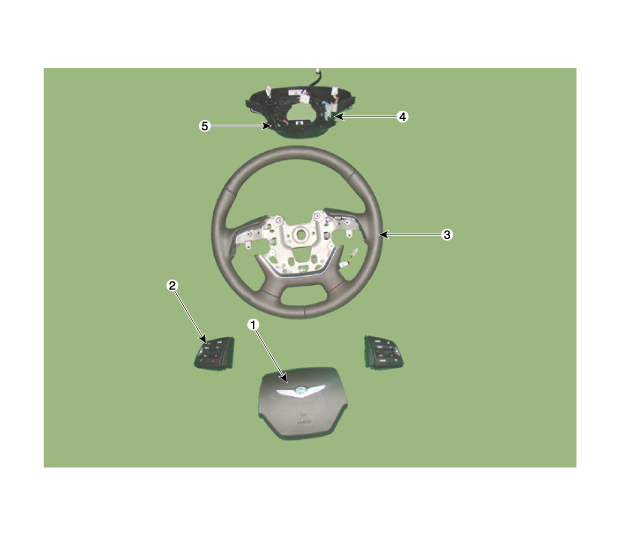

Components

1. Airbag module
2. Remote control switch
3. Steering wheel
4. Wiring
5. Lower cover

Steering wheel
...

Repair procedures
Removal 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels are placed in the straight ahead po ...
