Check Active Air Flap System

• This warning message illuminates if
any of following conditions occurs.
- There is a malfunction with the
active air flap system.
- A foreign substance is stuck in
the air flap.
- The air flap is frozen.
✽ NOTICE
The warning message "Check
Active Air Flap System" may not be
displayed immediately in colder climates.

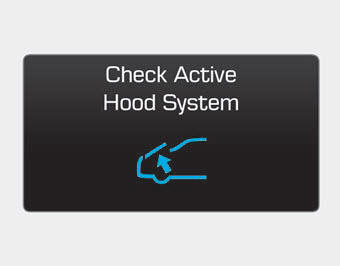

Check Active Hood System
.jpg)
• This warning message illuminates
if the active hood system has a
malfunction.
In this case, have your vehicle
inspected by an authorized
HYUNDAI dealer.
Other information:
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the PCSV connector.
3.
Measure resistance between the PCSV terminals 1 and 2.
4.
Check that the resistance is within the specification.
Specification: Refer to “Specification”
Removal
1.
Turn the ignition switc ...
Side Body A
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Side Body B
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Fender apron panel tooling hole (O10)Fender apron panel tool ...
