Hyundai Genesis: Trip computer / Trip A/B
.gif)
✽ NOTICE
If you reset one of the tripmeter,
elapsed time, and average vehicle
speed, they will be reset all together.

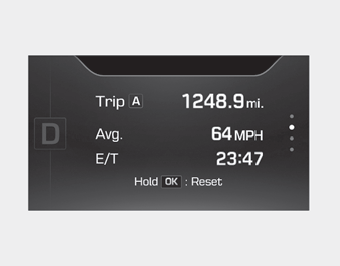

Tripmeter (1)
- The tripmeter is the total driving
distance since the last tripmeter
reset.
- Distance range:
0.0 ~ 9999.9 mi. or km
- To reset the tripmeter, press the
OK button on the steering wheel
for more than 1 second when the
tripmeter is displayed.
Average Vehicle Speed (2)
- The average vehicle speed is calculated
by the total driving distance
and driving time since the
last average vehicle speed reset.
- Speed range: 0 ~ 999 MPH or km/h
- To reset the average vehicle
speed, press the OK button on the
steering wheel for more than 1
second when the average vehicle
speed is displayed.
✽ NOTICE
- The average vehicle speed is not
displayed if the driving distance
has been less than 0.19 miles (300
meters) since the Engine Start/Stop
button was turned to ON.
- Even if the vehicle is not in
motion, the average vehicle speed
keeps calculating while the engine
is running.
Elapsed Time (3)
- The elapsed time is the total driving
time since the last elapsed time
reset.
- Time range (hh:mm): 00:00 ~ 99:59
- To reset the elapsed time, press the
OK button on the steering wheel for
more than 1 second when the
elapsed time is displayed.
✽ NOTICE
Even if the vehicle is not in motion,
the elapsed time keeps calculating
while the engine is running.
