✽ NOTICE

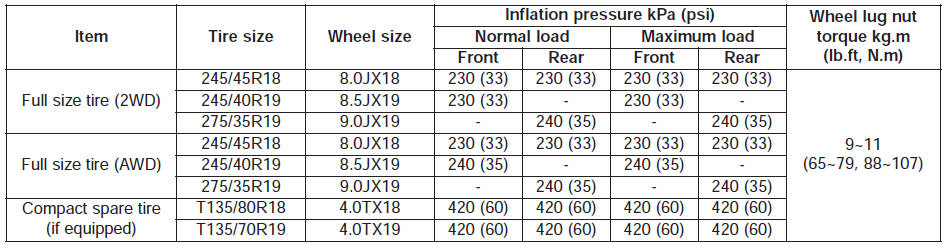

It is permissible to add 3psi (21 kPa) to the standard tire pressure
specification if colder temperatures are expected.
Tires typically loose 1psi for every 12°F (-11°C) temperature drop. If extreme
temperature variations are expected,
re-check your tire pressure as necessary to keep them properly inflated.
CAUTION
When replacing tires, use the same size originally supplied with the
vehicle.
Using tires of a different size can damage the related parts or not work
properly.
