Hyundai Genesis: Manual heating and air conditioning / Temperature control

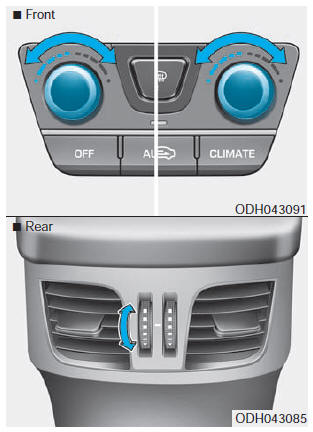

Turn the temperature control knob to set the desired temperature.

Rear temperature adjustment is independently controlled regardless of “SYNC” function.

Adjusting the driver and passenger side temperature equally (Type A)

• Press the "SYNC" button to adjust the driver and passenger side temperature equally. The passenger side temperature will be set to the same temperature as the driver side temperature.
• Turn the driver side temperature control knob. The driver and passenger side temperature will be adjusted equally.

Adjusting the driver and passenger side temperature individually (Type A)

• Press the "SYNC" button again to adjust the driver and passenger side temperature individually. The illumination of button turns off.
• Operate the driver side temperature control knob to adjust the driver side temperature.
• Operate the passenger side temperature control knob to adjust the passenger side temperature.

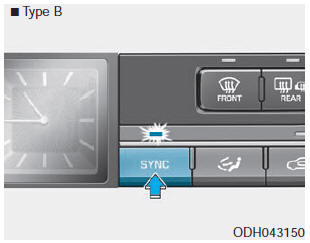

Adjusting temperature and mode of the driver & passenger side equally (Type B)

• Press the "SYNC" button to adjust the temperature and mode of the driver & passenger side equally. The passenger side temperature and mode selection will be set to the same as the driver side.
• Turn the driver side temperature control knob. The driver and passenger side temperature will be adjusted equally.
• Press the driver side mode selection button. The driver and passenger mode will be adjusted equally.

Adjusting temperature and mode of the driver & passenger side individually (Type B)

• Press the "SYNC" button again to adjust the temperature and mode of the driver & passenger side individually. The illumination of button turns off.
• Operate the driver side temperature control knob to adjust the driver side temperature.
• Operate the driver side mode selection button to adjust the direction of the driver side air flow.
• Operate the passenger side temperature control knob to adjust the passenger side temperature.
• Operate the passenger side mode selection button to adjust the direction of the passenger side air flow.

Temperature conversion

If the battery has been discharged or disconnected, the temperature mode display will reset to Fahrenheit.

This is a normal condition. You can switch the temperature mode between Centigrade to Fahrenheit as follows;

- Automatic climate control system

While pressing the OFF button, depress the AUTO button for 3 seconds or more. The display will change from Centigrade to Fahrenheit, or from Fahrenheit to Centigrade.

- “User Setting mode” in the cluster : You can change the temperature unit in the “Other features – Temperature unit”.

Mode selection

The mode selection button controls the direction of the air flow through the ventilation system. The air flow outlet port is converted as follows: Air flow is directed toward the upper ...

Air intake control

This is used to select the outside (fresh) air position or recirculated air position. To change the air intake control position, push the control button. Recirculated air position With th ...
