Hyundai Genesis: Driver position memory system / Resetting the driver's seat memory system

Take the following procedures to reset the driver's seat memory system, when it does not operate properly.

To reset the driver's seat memory system

1. Press the Engine Start/Stop button to the ON position, set the gear in P (Park), and open the driver's door.

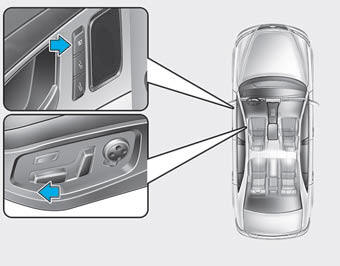

2. Operate the control switch/lever to set the driver's seat and seatback to the foremost position. 3. Simultaneously press the SET button and push forward the control lever over 2 seconds.

While resetting the driver's seat memory system

1. It starts with the alarming sounds.

2. The driver's seat and seatback is adjusted to the rearward position with the alarming sounds.

3. The driver's seat and seatback is re-adjusted to the default position (central position) with the alarming sounds.

However, in the following cases, the resetting procedure and the alarming sounds may stop.

- The memory button is pressed.
- The control switch/lever is operated.
- The gear is shifted out of P (Park).
- The driving speed exceeds 3 km/h.
- The driver's door is closed.

After the resetting procedure, set the driver's seat memory system for your comfort.

CAUTION

• Reattempt to do the resetting procedure again, when the resetting procedure or the alarming sound incompletely stops.
• Make sure that there is no obstacle around the driver's seat in advance of resetting the driver's seat memory system.

Storing positions into memory

1. Check that the shift lever is in P (Park) while the Engine Start/Stop button is in the ON position. 2. Adjust the driver's seat position, outside rearview mirror position, steering wheel p ...

Easy access function

When exiting the vehicle, the steering wheel will move away from the driver and the seat will move rearward when the engine is turned off. When entering the vehicle, the steering wheel will m ...
