.jpg)

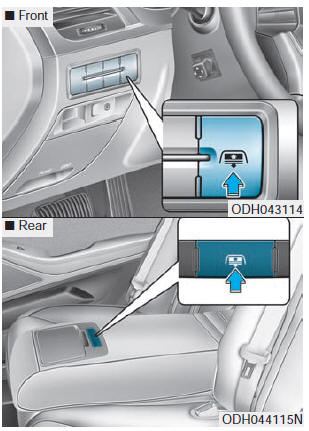

To raise and lower the rear curtain,
press the button.
.jpg)

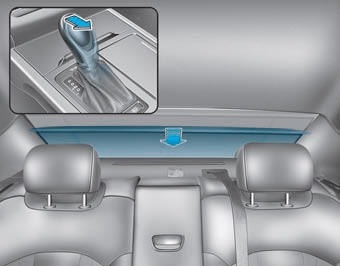

The rear curtain will be lowered automatically
when you shift the shift
lever into R (Reverse) and raised
automatically when you shift the shift
lever from R (Reverse) into P (Park).
After the rear curtain is lowered by
shifting into R (Reverse), if you drive
more than 12 mph (20 km/h) with the
shift lever in D (Drive), the rear curtain
will be raised automatically.
CAUTION
Do not apply excessive force
while operating the rear curtain.
This could cause damage to the
rear curtain.
