Hyundai Genesis: Power Windows / Power Window Motor Components and Components Location

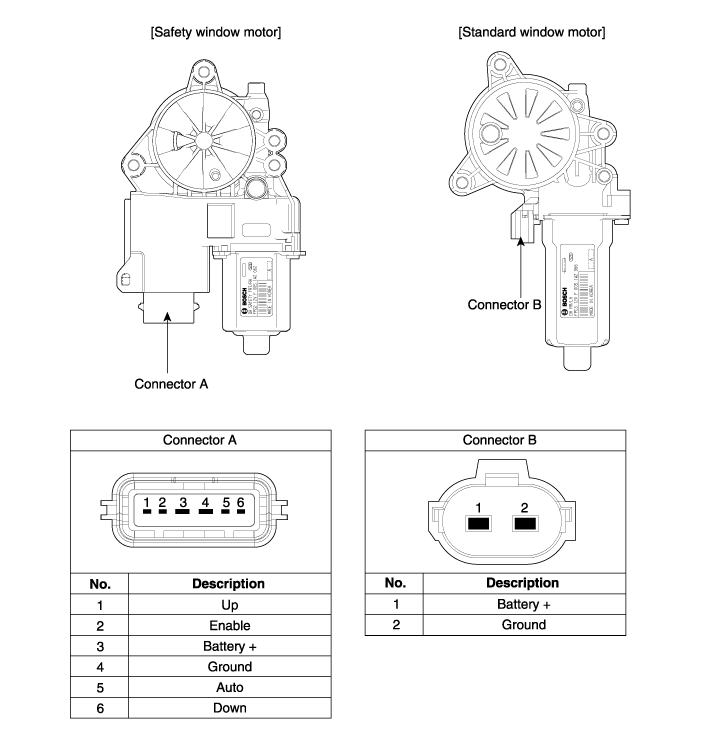

Components

Description and Operation

Safety Function of Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When the force of 100N (using the 10N/mm spri ...

Power Window Motor Schematic Diagrams

Circuit Diagram ...
