Hyundai Genesis: Parking Assist System / Operation of the Parking Assist System

Operating condition

- When the Engine Start/Stop button is in the ON position
- When the shift lever is in D or R position
- When the vehicle speed is not over 6 mph (10 km/h)

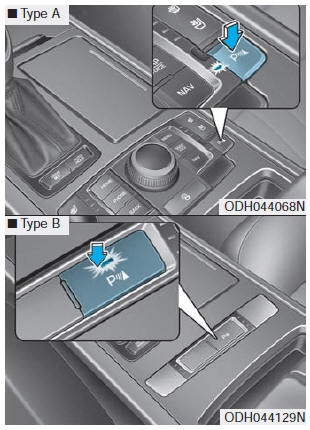

Push the parking assist system button to the ON position to operate the parking assist system. The indicator in the button turns on.

To cancel the system, push the button again. The indicator in the button turns off.

• The system will operate automatically every time the vehicle speed is below 6 mph (10 km/h) with the system switched on.
• When you move the shift lever to R position with the system switched off, the indicator in the button will turn on and the system will operate automatically regardless of button status. However, if the vehicle speed exceeds 12 mph (20 km/h) when driving forward, the indicator in the button will turn off. The system will not automatically operate again even if vehicle speed returns to 6 mph (10 km/h). To turn on the system, press the parking assist system button.
• When more than two objects are sensed at the same time, the closest one will be recognized first.

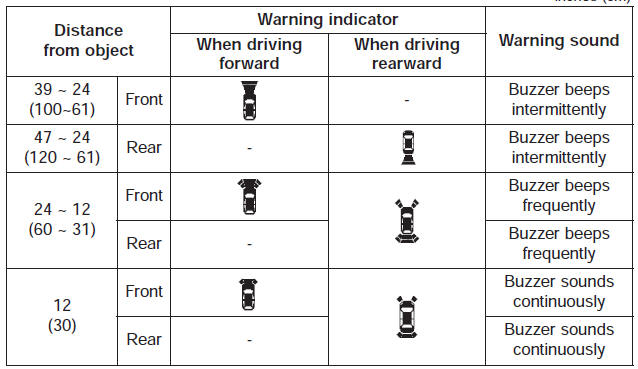

Types of warning sound and indicator

✽ NOTICE

• The indicator may differ from the illustration as objects or sensors status. If the indicator blinks, have your vehicle checked by an authorized HYUNDAI dealer.
• If the audible warning does not sound or if the buzzer sounds intermittently when shifting into R (Reverse) position, this may indicate a malfunction with the Parking Assist System. If this occurs, have your vehicle checked by an authorized HYUNDAI dealer as soon as possible.
