Hyundai Genesis: Manual heating and air conditioning / OFF mode

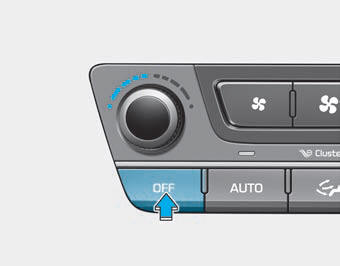

Push the OFF button of the front to turn off the air climate control system. However, you can still operate the mode and air intake buttons as long as the Engine Start/Stop button is in the ON position.

Air conditioning
Push the A/C button to turn the air conditioning system on (indicator light will illuminate). Push the button again to turn the air conditioning system off. ...

Climate information screen selection button
To change the screen into the climate information screen, press the climate information screen selection button. ...
