Hyundai Genesis: If you have a flat tire / Jack and tools

➀ Jack handle
② Jack
③ Wheel nut wrench
④ Screw driver
⑤ Spanner
⑥ Towing hook

The jack, jack handle, and wheel lug nut wrench are stored in the luggage compartment under the luggage box cover.

The jack is provided for emergency tire changing only.

Turn the winged hold down bolt counterclockwise to remove the spare tire.

Store the spare tire in the same compartment by turning the winged hold down bolt clockwise.

To prevent the spare tire and tools from “rattling,” store them in their proper location.

If it is hard to loosen the tire holddown wing bolt by a hand, you can loosen it easily using the Jack handle.

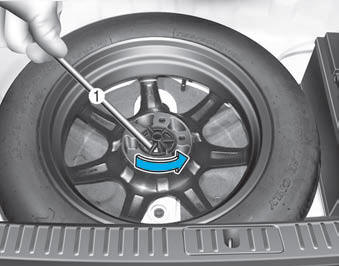

1. Put the Jack handle (1) into the inside of tire hold-down wing bolt.

2. Turn the tire hold-down wing bolt counterclockwise by the Jack handle to utilize the principles of the lever and fulcrum.

CAUTION

When you remove or store the spare tire, don't give a shock to the battery.

Shock to the battery may cause failure of electrical circuits.
