Hyundai Genesis: Intake And Exhaust System / Intake Manifold Components and Components Location

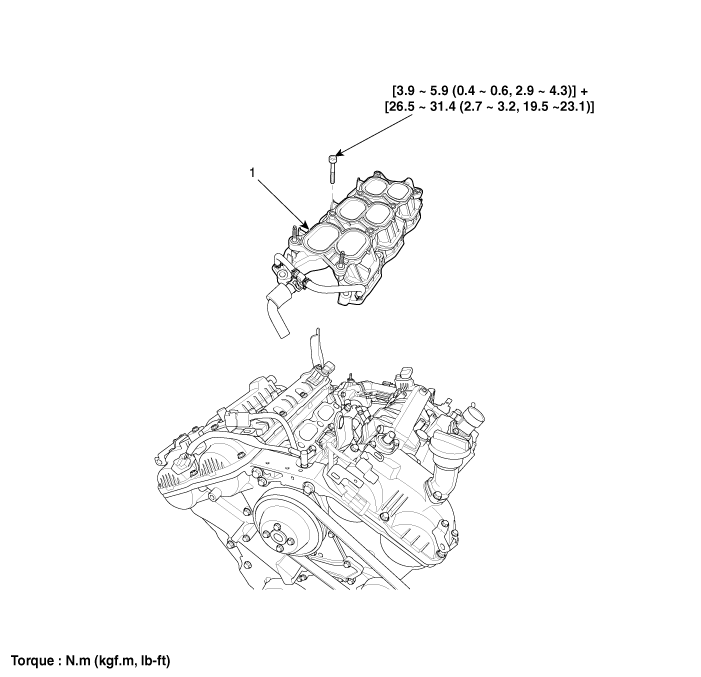

Components

1. Intake manifold

Surge Tank Repair procedures

Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. 3. Remove the engine room cover. (Refer to Engine And Transaxle Assembly - ...

Intake Manifold Repair procedures

Removal and Installation 1. Remove the surge tank. (Refer to Intake and Exhaust System - "Surge Tank") 2. Remove the breather pipe & hose (A). Tightening torque : 9.8 ~ 11.8 N.m ( ...
