Hyundai Genesis: Engine Control System / Injector Troubleshooting

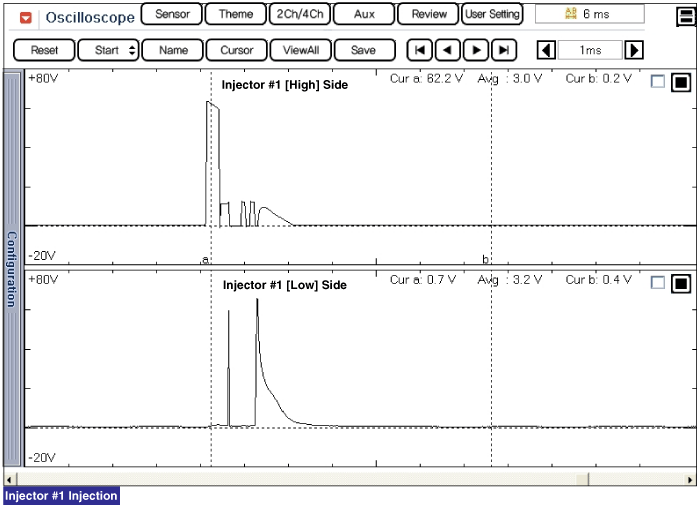

Signal Waveform

Injector Specifications
Specification ItemSpecificationCoil Resistance (?)0.98 ~ 1.14 [20°C(68°F)] ...

Injector Schematic Diagrams
Circuit Diagram ...
