Hyundai Genesis: Smart trunk / How to use the Smart Trunk
The trunk can be opened with notouch activation satisfying all the conditions below.
- After 15 seconds when all doors are closed and locked
- Positioned in the detecting area for more than 3 seconds.
✽ NOTICE
• The Smart Trunk does not operate when:
- The smart key is detected within
15 seconds after the doors are
closed and locked, and is continuously
detected.
- The smart key is detected within
15 seconds after the doors are
closed and locked, and within 60
inches (1.5 m) from the front
door handles. (for vehicles
equipped with Welcome Light)
- A door is not locked or closed.
- The smart key is in the vehicle.
.jpg)

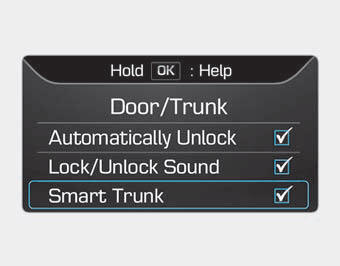

1. Setting
To activate the Smart Trunk, go to User Settings Mode and select Smart Trunk on the LCD display.
.jpg)

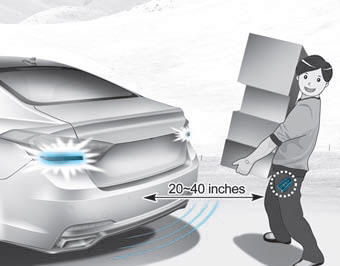

2. Detect and Alert
If you are positioned in the detecting area (20~40 inches (50 ~100 cm) behind the vehicle) carrying a smart key, the hazard warning lights will blink and chime will sound for about 3 seconds to alert you the smart key has been detected and the trunk will open.
✽ NOTICE
Do not approach the detecting area if you do not want the trunk to open. If you have unintentionally entered the detecting area and the hazard warning lights and chime starts to operate, leave the detecting area with the smart key. The trunk will stay closed.
.jpg)

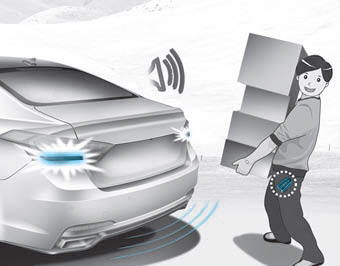

3. Automatic opening
The hazard warning lights will blink and chime will sound 2 times and then the trunk will slowly open.
WARNING
- Make sure you close the trunk before driving your vehicle.
- Make sure there are no people or objects around the trunk before opening or closing the trunk.
- Make sure objects in the trunk do not come out when opening the trunk on a slope. It may cause serious injury.
- Make sure to deactivate the Smart Trunk when washing your vehicle. Otherwise, the trunk may open inadvertently.
- The key should be kept out of reach of children. Children may inadvertently open the Smart Trunk while playing around the rear area of the vehicle.
Smart trunk
On a vehicle equipped with a smart
key, the trunk can be opened with
no-touch activation using the Smart
Trunk system. ...
How to deactivate the Smart
Trunk function using the smart
key
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
If you press any button of the smart
key during the Detect and Alert
stage, the Smart Trunk function will
be deactivated.
Make sure t ...
