The hazard warning flasher serves
as a warning to other drivers to exercise
extreme caution when
approaching, overtaking, or passing
your vehicle.
It should be used whenever emergency
repairs are being made or
when the vehicle is stopped near the
edge of a roadway.

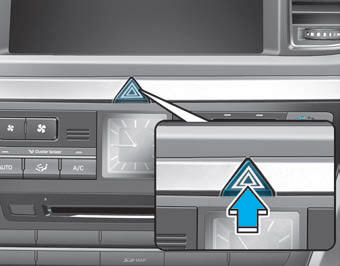

To turn the hazard warning flasher
on or off, press the hazard warning
flasher button with the Engine
Start/Stop button in any position. The
button is located in the center fascia
panel. All turn signal lights will flash
simultaneously.
- The hazard warning flasher operates
whether your vehicle is running
or not.
- The turn signals do not work when
the hazard flasher is on.
