Hyundai Genesis: Premium AVN System / Front LCD monitor Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Premium AVN System / Front LCD monitor Components and Components Location

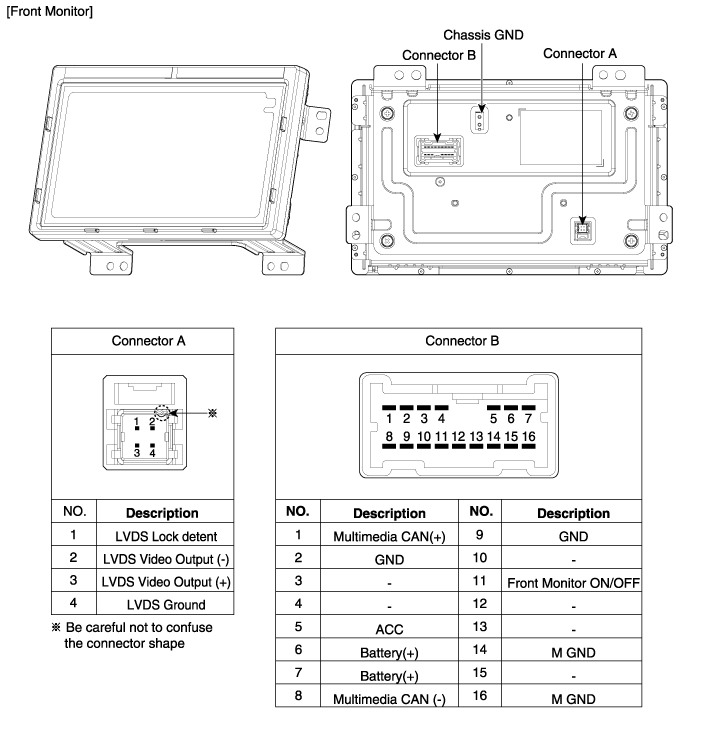

Components

AVN(Audio Video Navigation) head unit Repair procedures
Removal     - Take care not to scratch the crash pad and related parts. - Eject all discs before removing the AVN head unit not to damage the DVD player’s load mechanism. ...

Front LCD monitor Repair procedures
Removal     Take care not to scratch the crash pad and related parts. 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad side garnish assembly. (Ref ...
