Hyundai Genesis: Air Conditioning System / Cluster Ionizer Repair procedures
Hyundai Genesis (DH) 2013-2016 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Cluster Ionizer Repair procedures
| Inspection |
| 1. |
Press the MODE switch more than 4 times within 2 seconds while pressing the OFF switch.
* For diagnostic procedure, refer to DTC guide.
|
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the glove box upper cover.
(Refer to Body - "Crash Pad Main Lower Assembly") |
| 3. |
Loosen the mounting screw and then remove the shower duct (A).
|
| 4. |

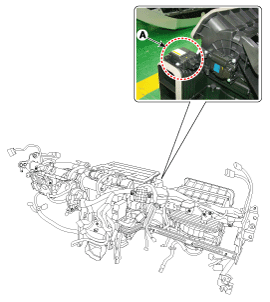

Disconnect the evaporator temperature sensor connector, and then remove the cluster ionizer (A).
|
| 5. |
Install in the reverse order of removal. |
Cluster Ionizer Description and Operation
Description
The cluster ionizer disinfects and decomposes bad smell from
the air-conditioner or inflow air in order to clean the indoor air of a
vehicle.
When the ignition switch is ON, the io ...
