Hyundai Genesis: Cooling System / Water Temperature Control Assembly Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Cooling System / Water Temperature Control Assembly Components and Components Location

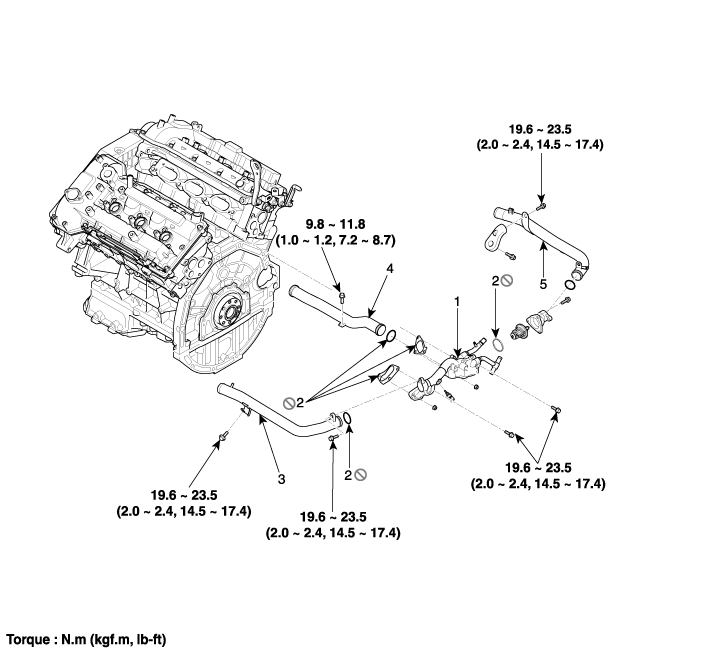

Components

1. Water temperature control assembly
2. O-ring
3. Water outlet pipe
4. Water center pipe
5. Water inlet pipe

Reservoir Tank Repair procedures
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. 3. Remove the engine room cover. (Refer to Engine And Transaxle Assembly - ...

Water Temperature Control Assembly Repair procedures
Removal and Installation Water Temperature Control Assembly 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine room under cover. (Refer to Engine And Transaxle ...
