Hyundai Genesis: Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic Diagrams

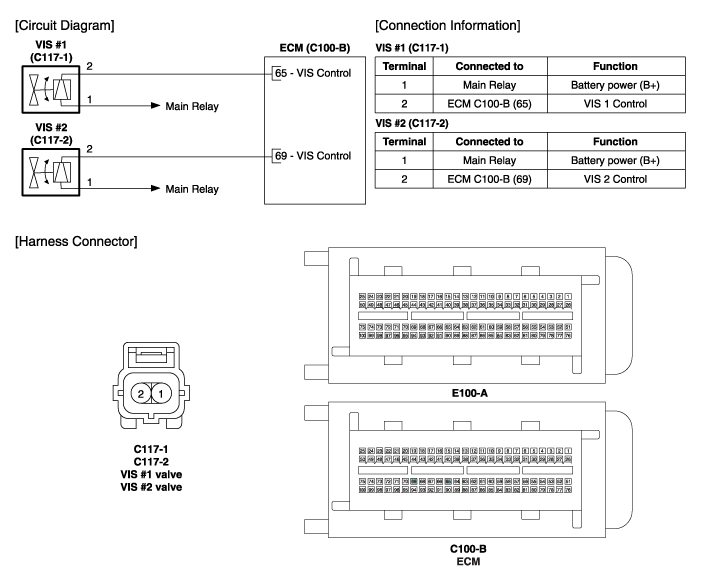

Circuit Diagram

Variable Intake Solenoid (VIS) Valve Specifications
Specification ItemSpecificationCoil Resistance (?)30.0 ~ 35.0 [20°C(68°F)] ...

Variable Intake Solenoid (VIS) Valve Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance between the VIS valve terminals 1 and 2. 4. Check that the resistance is within ...
