Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Back Panel Components and Components Location

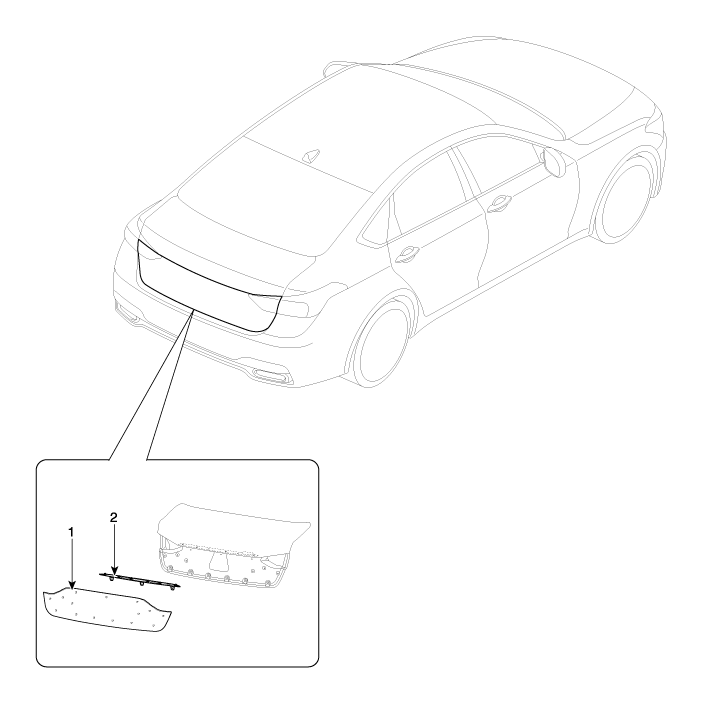

Component Location

1. Trunk lid back panel
2. Tailgate garnish

Trunk Lid Key Holder Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...

Trunk Lid Back Panel Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...
