Hyundai Genesis: Multimedia System / Steering wheel audio control

CAUTION

Do not operate audio remote control buttons simultaneously.

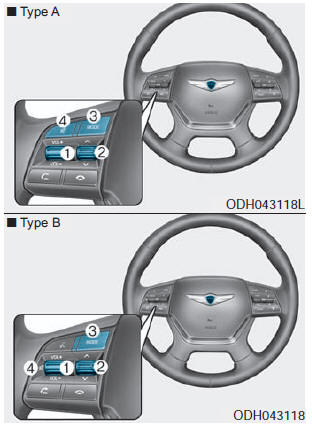

VOLUME (VOL + / - ) (1)

• Move the VOLUME lever up to increase volume.
• Move the VOLUME lever down to decrease volume.

SEEK/PRESET () (2)

If the SEEK/PRESET lever is moved up or down and held for 0.8 second or more, it will function in the following modes;

RADIO mode

It will function as the AUTO SEEK select button. It will SEEK until you release the button.

MEDIA mode

It will function as the FF/REW button.

If the SEEK/PRESET lever is moved up or down, it will function in the following modes;

RADIO mode

It will function as the PRESET STATION UP/DOWN button.

MEDIA mode

It will function as the TRACK UP/ DOWN button.

MODE (3)

Press the MODE button to select Radio, XM, Disc, or AUX.

MUTE () (4)

• Press the MUTE button to mute the sound.
• Press the MUTE button again to activate the sound.

✽ NOTICE

Detailed information is described in a separately supplied manual.
