Hyundai Genesis: Interior lights / Rear lamps

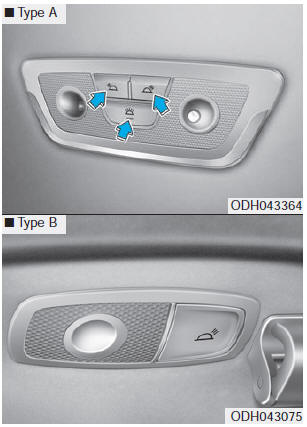

Rear Room Lamp ():

Press this button to turn the room lamp on and off.

Front lamps
(1) Front Map Lamp (2) Front Door Lamp (3) Front Room Lamp Front Map Lamp (): Press either of these buttons to turn the map lamp on or off. This light produces a spot beam for convenient ...

Trunk room lamp
The trunk room lamp comes on when the trunk is opened. CAUTION The trunk lamp comes on as long as the trunk lid is open. To prevent unnecessary charging system drain, close the trunk lid ...
