Hyundai Genesis (DH): Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic Diagrams
Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic Diagrams

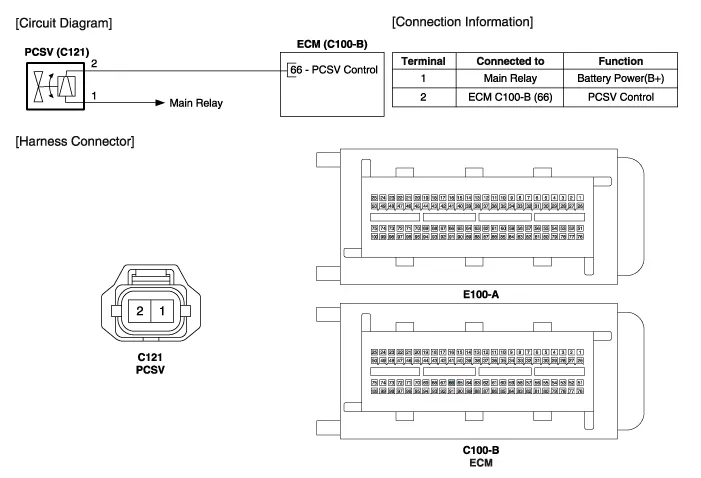

| Circuit Diagram |
Specification ItemSpecificationCoil Resistance (?)22.0 ~ 26.0 [20
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV terminals 1 and 2. 4.
