Hyundai Genesis: Power Door Locks / Power Door Lock Switch Repair procedures

Inspection
Diagnosis With GDS
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS).
(1)
Self diagnosis : Checking failure and code number (DTC)
(2)
Current data : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
Additional function : Controlling other features including system option setting and zero point adjustment
2.
Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.
3.
Select the 'Driver seat or Assistant seat door module (DDM/ADM)' to check the driver seat or assistant door module (DDM/ADM).
4.

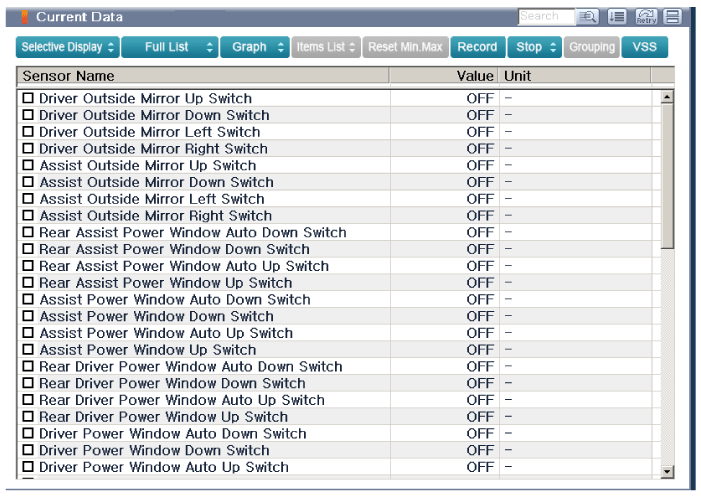

Select the "Current Data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the driver seat or assistant door module(DDM/ADM) can be checked.

5.

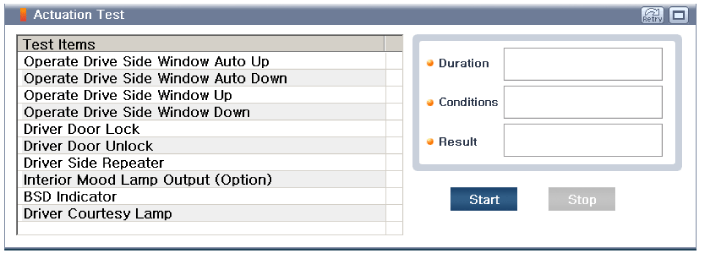

If you will check the power door lock operation forcefully, select "Actuation test".
