Hyundai Genesis (DH): Engine Control System / Oil Pressure Sensor (OPS) Schematic Diagrams

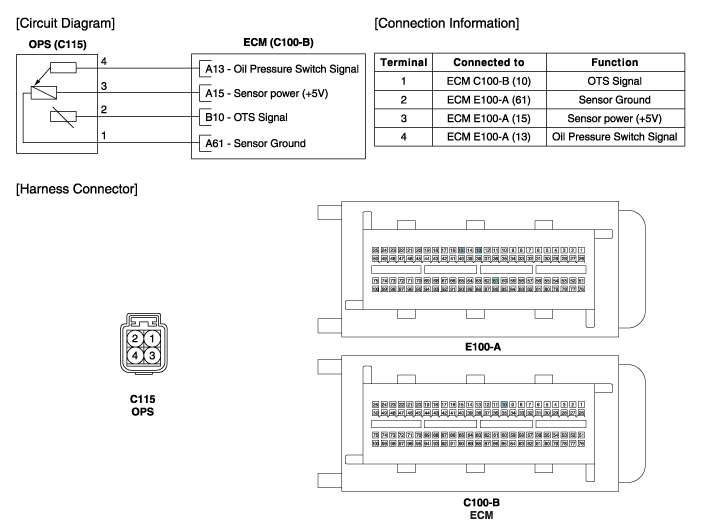

| Circuit Diagram |
Specifications TerminalResistance (k?)2 - 42.76 ~ 4.132 - 31.89 ~ 2.843 - 41.71 ~ 2.84
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OPS connector. 3. Remove the OPS (Refer to "Removal"). 4. After immersing the thermistor of the sensor into engine coolant, measure resistance between the OPS terminals 1 and 2.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Description and Operation
Description System Overview The System offers the following features: - Changing the state of engine ignition and power by using the start button. - Controlling external relays for ACC / IGN1 / IGN2 terminal switching and STARTER, without use of mechanical ignition switch.
Hyundai Genesis (DH) 2013-2016 Service Manual: Ambient Temperature Sensor Description and Operation
Description The ambient temperature sensor is located inside the side mirror and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature. The sensor output will be used for discharge temperature control, temperature regulation door control,
