Hyundai Genesis: Trunk / Non-Powered Trunk

To open:

1. Make sure the shift lever is in P (Park).

2. Then do one of the following :

- Press the Smart Key Trunk Unlock button for more than one second.
- Press the button on the trunk itself with the Smart Key in your possession.
- Use the mechanical key.

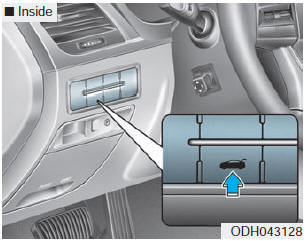

- Use the trunk release button.

3. Lift the trunk lid up.

To close:

Lower the trunk lid and press down until it locks.

WARNING

Always keep the trunk lid completely closed while the vehicle is in motion. If it is left open or ajar, poisonous exhaust gases containing carbon monoxide (CO) may enter the vehicle and serious illness or death may result.

WARNING

Make sure there are no people or objects around the trunk before opening or closing the Power Trunk.Wait until the trunk is open fully and stopped before loading or unloading cargo from the vehicle.

CAUTION

To prevent damage to the trunk lift cylinders and the attached hardware, always close the trunk before driving.

✽ NOTICE

In cold and wet climates, trunk lock and trunk mechanisms may not work properly due to freezing conditions.
