Inspection

1.	Turn the ignition switch OFF.

2.	Disconnect the mode control actuator connector.

Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.

Verify that the mode control actuator operates to the vent mode when connected in reverse.

1. -
2. -
3. Defrost mode
4. Vent mode

5. Sensor ground
6. Feedback signal
7. Sensor (+ 5V)

4.	Connect the mode control actuator connector.

5.	Turn the ignition switch ON.

Check the voltage between terminal 6 and 5.

Specification

Door position	Voltage (V)	Error detecting
Vent	0.3±0.15	Low voltage : 0.1V or less
Defrost	4.7±0.15	High voltage : 4.9V or more

It will feedback the current position of the actuator to controls.

7.	If the measured voltage is not within specification, replace it with a genuine mode control actuator and check for proper operation.

8.	Replace the mode control actuator if it is proved that there is a problem with it.

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the main crash pad. (Refer to Body - "Main Crash Pad")

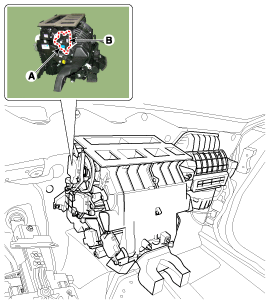

3.	Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.

4.	Install in the reverse order of removal.
