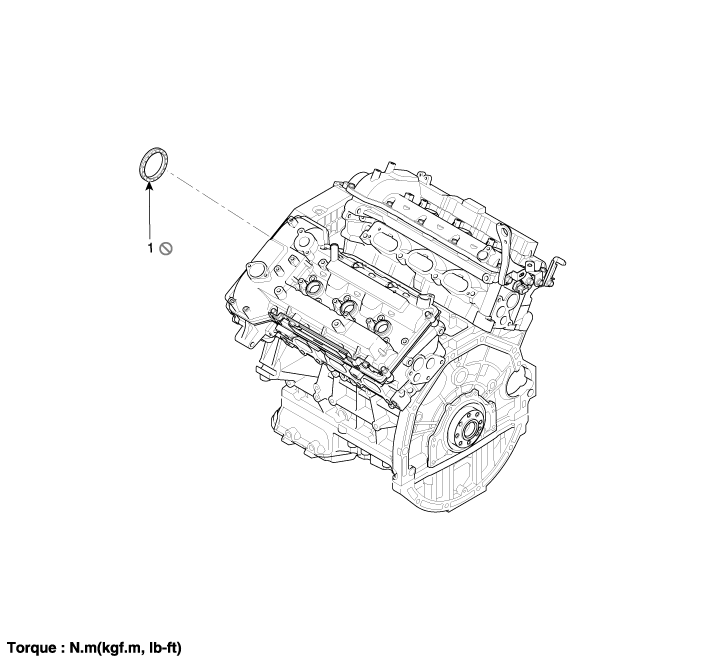

Components

1. Front oil seal

Crankshaft Damper Pulley Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the engine under cover. 3. Remove the crankshaft pulley (A). Tightening torque : 2 ...

Front Oil Seal Repair procedures
Removal 1. Remove the crankshaft pulley. (Refer to Timing System - "Crankshaft Pulley") 2. Remove the timing chain cover oil seal (A). Installation 1. Using SST (09231-3C100), install t ...
