Hyundai Genesis: Smart trunk / Detecting area

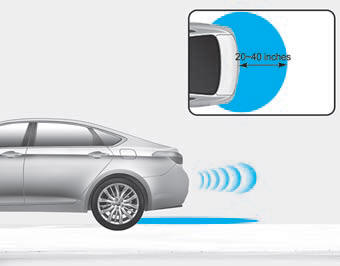

• The Smart Trunk operates with a welcome alert if the smart key is detected within 20~40 inches (50~100 cm) from the trunk.
• The alert stops at once if the smart key is positioned outside the detecting area during the Detect and Alert stage.

✽ NOTICE

• The Smart Trunk function will not work if any of the following occurs:
  - The smart key is close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the transmitter.
  - The smart key is near a mobile two way radio system or a cellular phone.
  - Another vehicle's smart key is being operated close to your vehicle.
• The detecting range may decrease or increase when :
  - One side of the tire is raised to replace a tire or to inspect the vehicle.
  - The vehicle is slantingly parked on a slope or unpaved road, etc.

How to deactivate the Smart Trunk function using the smart key

1. Door lock 2. Door unlock 3. Trunk open 4. Panic If you press any button of the smart key during the Detect and Alert stage, the Smart Trunk function will be deactivated. Make sure t ...

Fuel filler door

Opening the fuel filler door The fuel filler door must be opened from inside the vehicle by pushing the fuel filler door opener button. 1. Turn the engine off. 2. Push the fuel filler door op ...
