Hyundai Genesis: Body Dimensions / Cross Member Body Repair

Front Cross Member

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

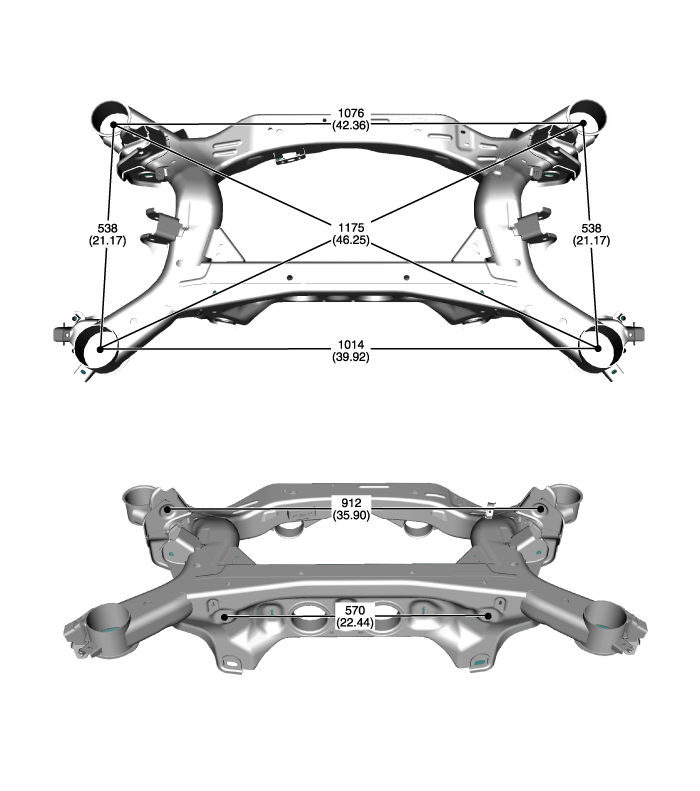

Rear Cross Member

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Under Body Body Repair
Projected Dimensions [2WD] * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] [4WD]Actual Measurement Dimensions * These dimensions indic ...

Body Panel Gaps Body Repair
...
