Hyundai Genesis: Crash Pad / Crash Pad Lower Panel Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
2.

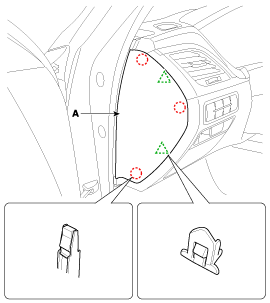

Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

3.

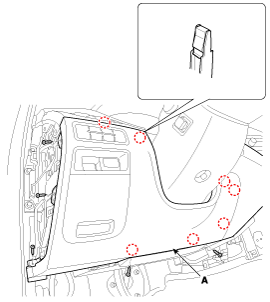

After loosening the mounting screws, remove the crash pad lower panel (A).

4.
Disconnect the diagnosis connector (A) and various connectors (B).

5.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damage clips.
Crash Pad Lower Panel Components and Components Location
Component Location 1. Crash pad lower panel ...

Glove Box Components and Components Location
Component Location 1. Glove box ...
