Hyundai Genesis: IMS(Integrated Memory System) / Components and Components Location

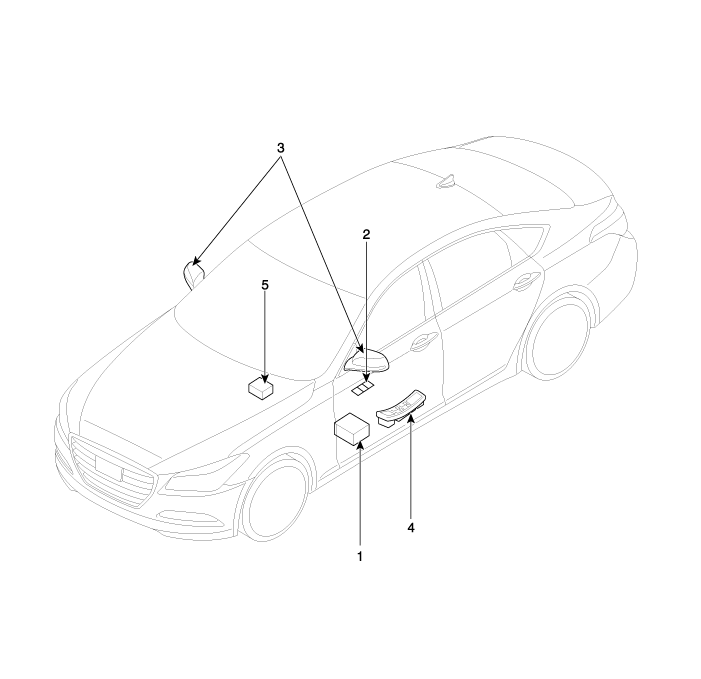

Components

1. Memory power seat unit (PSM module) 2. IMS control switch 3. Outside Mirror

4. IMS mirror control (driver's power window switch) 5. SCM module

Specifications

Specifications Memory power seat unit Item SpecificationsRated voltageDC 12VOperating VoltageDC 9V ~ 16VOperating Temperature Range-30°C ~ 75°C Dark currentMax. 1? Memory power seat switch ...

Schematic Diagrams

Components ...
