Hyundai Genesis: Interior Trim / Components and Components Location

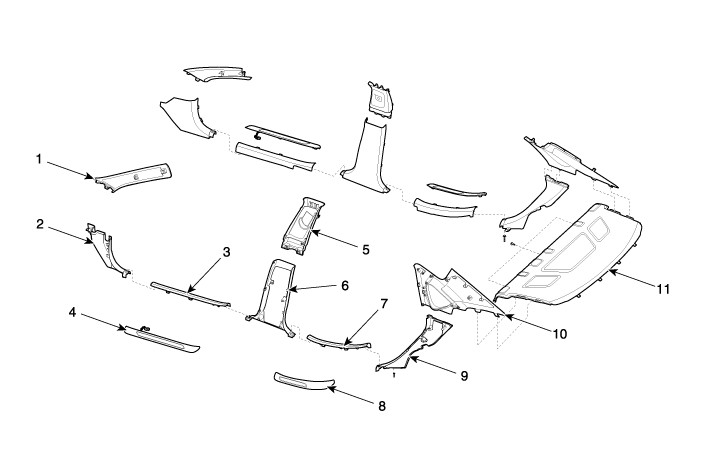

Components

1. Front pillar trim
2. Cowl side trim
3. Front door scuff trim
4. Front door step trim
5. Center pillar upper trim
6. Center pillar lower trim
7. Rear door scuff trim
8. Rear door step trim
9. Rear wheel house trim
10. Rear pillar trim
11. Rear package tray trim

Interior Trim
...

Door Scuff Trim Components and Components Location
Component Location 1. Front door scuff trim2. Rear door scuff trim ...
