Components
[General Type]

1. Roof trim
2. Sunvisor [LH]
3. Sunvisor [RH]
4. Assist handle bracket

[Panorama Sunroof Type]

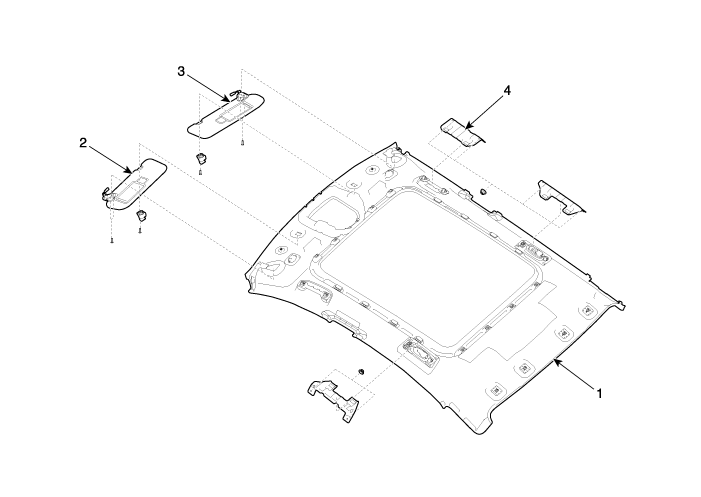

1. Roof trim
2. Sunvisor [LH]
3. Sunvisor [RH]
4. Assist handle bracket

    Component Location 1. Sunvisor2. Retainer
