Hyundai Genesis: Tire Pressure Monitoring System / Components and Components Location

Components

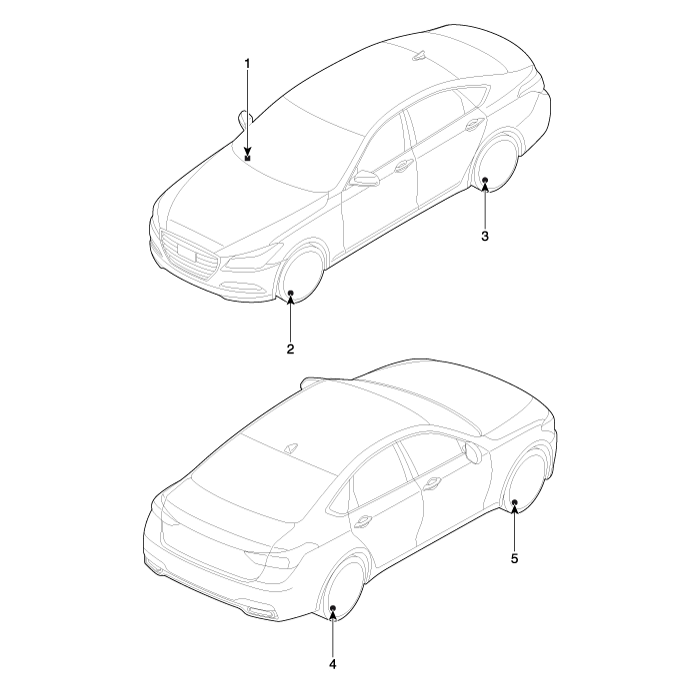

1. Receiver 2. TPMS Sensor (FL) 3. TPMS Sensor (RL)

4. TPMS Sensor (RR) 5. TPMS Sensor (FR)

Tire Pressure Monitoring System

...

Description and Operation

Description Tread Lamp - Tire Under Inflation / Leak Warning. 1. Turn-on condition A. When tire pressure is below allowed threshold B. When rapid leak is detected by the sensor. 2 ...
