Components Location

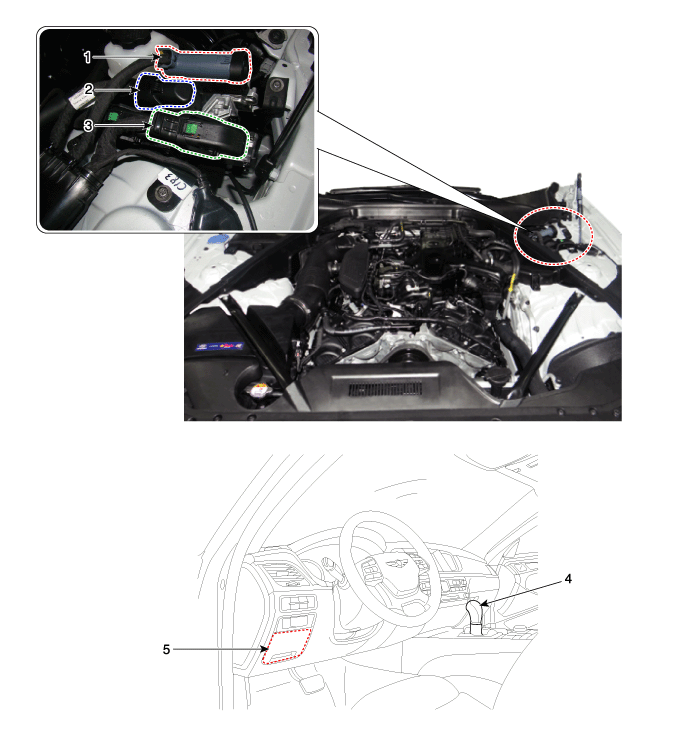

[Vehicle Components]

1. Transmission Control Module(TCM)
2. Injector Driver Box(IDB)
3. Engine Control Module(ECM)
4. Shift lever
5. Date Link Connector (DLC)

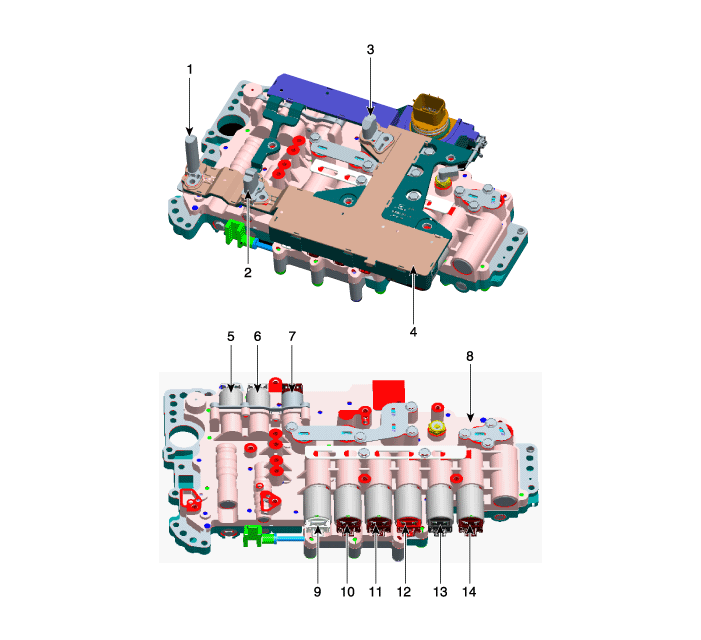

[Transmission Components]

1. Input speed sensor
2. Middle speed sensor
3. Output speed sensor
4. E Module assembly
5. Line pressure control solenoid valve
6. Damper clutch control solenoid valve
7. ON/OFF solenoid valve
8. Valve body assembly
9. 8LR/B control solenoid valve
10. 6/C control solenoid valve
11. 27/B control solenoid valve
12. 35R/C control solenoid valve
13. 4&OD/C control solenoid valve
14. UD/C control solenoid valve

    Circuit Diagram

    Description Transmission Control Module (TCM) plays a role of the brain for the automatic transmission. The module receives and processes signals from various sensors and implements a wide range of Transmission controls to ensure optimal driving conditions for the driver.
