Hyundai Genesis: Auto Head Lamp Leveling Device / Components and Components Location

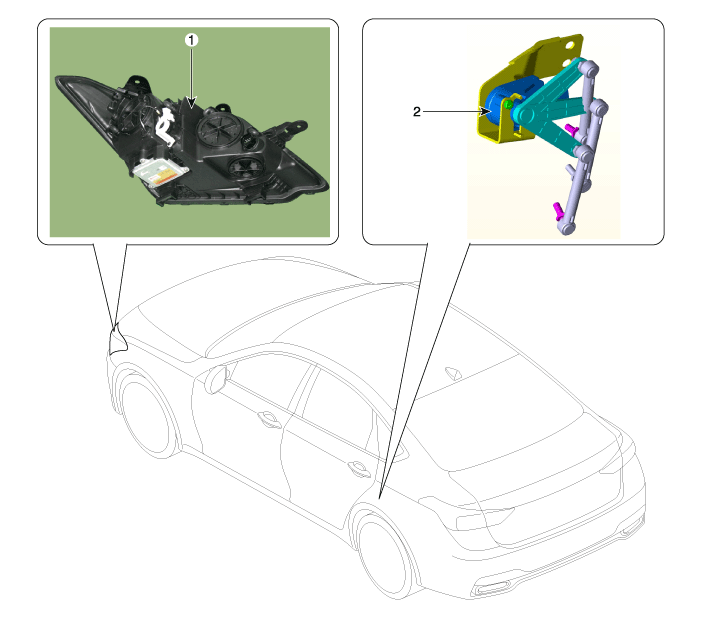

Component Location

1. Head lamp leveling actuator (Built - in Head lamp)
2. Head lamp leveling unit (Rear left only)

Auto Head Lamp Leveling Device
...

Auto Head Lamp Leveling Unit Schematic Diagrams
Circuit Diagram ...
