Hyundai Genesis: Panorama sunroof / Closing the sunroof

Press the sunshade CLOSE button. The sunroof glass will close then the sunshade will close. To stop the sunroof movement at any point, press the sunshade control switch momentarily.

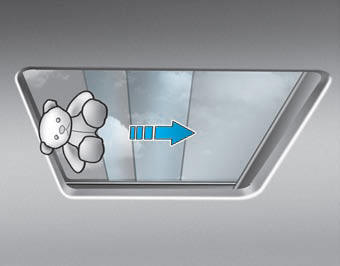

Automatic reverse

If the sunroof senses any obstacle while it is closing automatically, it will reverse direction then stop to allow the object to be cleared.

WARNING

  • Make sure heads, other body parts or other objects are safely out of the way before closing the sunroof to avoid injuries or vehicle damage. Objects less than 0.16 inch (4 mm) in diameter caught between the sunroof glass and the front glass channel may not be detected by the automatic reverse glass and the glass will not stop and reverse direction.
  • To avoid serious injury or death, do not extend your head, arms or body outside the sunroof while driving.
  • A panorama sunroof is made of glass, therefore it may break in an accident. If you do not have your seat belt on, you may stick out of the broken glass and get injured or killed. For all passengers safety, have an appropriate protection on (ex. seat belt, CRS, etc.).

CAUTION

  • Periodically remove any dirt that may accumulate on the sunroof guide rail or between the sunroof and roof panel.
  • Do not try to open the sunroof when the temperature is below freezing or when the sunroof is covered with snow or ice, the motor could be damaged.

✽ NOTICE

After the vehicle is washed or in a rainstorm, be sure to wipe off any water that is on the sunroof before operating it.

Tilting the sunroof
When the sunshade is closed If you push the sunroof control lever upward, the sunshade will slide all the way open then the sunroof glass will tilt. To stop the sunroof movement at any poi ...

Resetting the sunroof
Sunroof needs to be reset if (in the followings) - Battery is discharged or disconnected or the related fuse has been replaced or disconnected. - The one-touch sliding function of the sun ...
