Hyundai Genesis: Tire Pressure Monitoring System (TPMS) / Check tire pressure

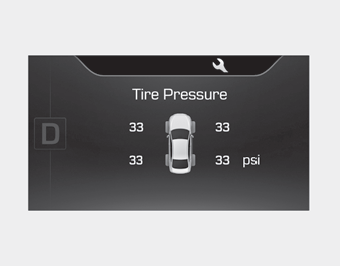

• You can check the tire pressure in the Information Mode on the cluster.
• Tire pressure is displayed 1~2 minutes after driving.
• If tire pressure is not displayed when the vehicle is stopped, “Drive to display” message will appear. After driving, check the tire pressure.
• The displayed tire pressure values may differ from those measured with a tire pressure gauge.
• You can change the tire pressure unit in the User Settings Mode on the cluster.
  - psi, kpa, bar
