Hyundai Genesis (DH): Automatic Transmission Cooling System / ATF Warmer Components and Components Location

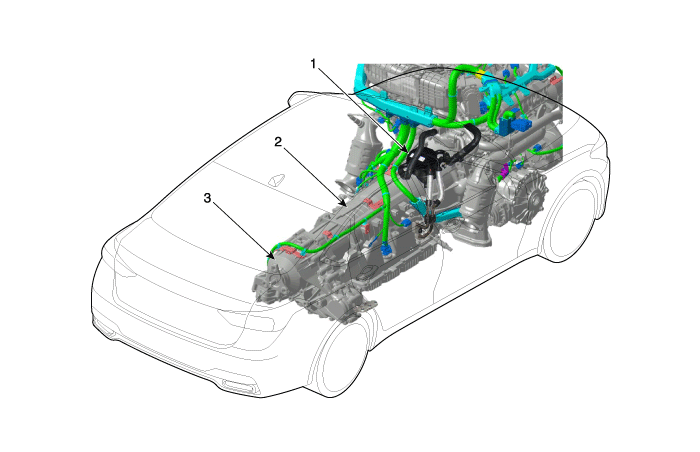

| Component Location |
| 1. ATF Warmer 2. Transmission | 3. Transfer case(AWD) |
Description The ATF warmer is mounted on the transmission to reduce oil viscosity frictionby increasing the temperature of oil in cold state, which in turn improves fuel efficiency It is mounted on the entry of the Electronic Throttle Controller (ETC) in series, as shown in the diagram, and minimizes the effects of cabin heating system.
Removal 1. Draining the coolant. (Refer to Engine Mechanical System - "Coolant") 2. Remove the exhaust manifold. (Engine Mechanical System - "Exhaust Manifold") 3.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: General Safety Information and Caution
Instructions When Handling Refrigerant 1. R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite. When handling the refrigerant, be sure to wear gloves. 2. It is standard practice to wear goggles or glasses to protect your eyes, and gloves to protect your hands.
Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
